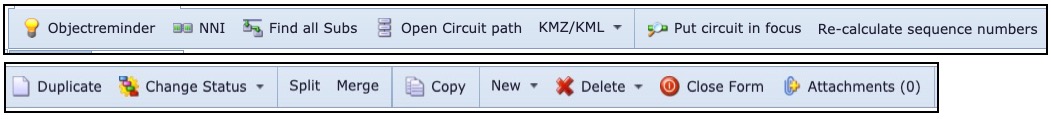

Some Icons may be hidden or displayed depending on their sub channel format

Objectreminder

Displays the last 100 objects that a user (Username) has worked on – this makes for easy access to any recent object activity

NNI

Lists all the Network to Network interface connections, with filtering capabilities to search for specific circuits

Open subgraphical

A graphical view  for channelised circuits – feature hidden for non channelised circuits

Find all Subs

Displays a Circuits existing sub circuits

Open Circuit Path

Displays a graphical end to end view of a given Circuit – showing links and component circuit objects from A to Z end. Optional text information can also be displayed. Option to save the image as an SVG file.

KMZ/KML

Export Circuit’s geographical data as KMZ or KML file

Put circuit in focus

Put this Circuit in Focus for orders and further work

Re-calculate sequence numbers

Recalculate the sequence numbers of any ports and carriers to redraw it accurately (like a refresh) i.e., due to reroutes and changes to the network over time

Duplicate

Duplicate this Circuit – popup window opens to enable new ports to be selected, whilst most other details remain constant.

Change Status

Change the status of this circuit

Split

Divide this Circuit to become two separate circuits. Popup window appears to select the new ports details, etc.

Merge

Combine this Circuit with another Circuit

Copy

Feature under development

New

Circuit

Create a new Circuit altogether

Add contract

For this Circuit, add a contract

CircuitAlias

For this Circuit, provide an Alias name

CircuitDomain

For this Circuit, add it to a network domain

MspProtection

For this Circuit, Add Multiplex Section Protection i.e., 1+1, N:1

CircuitProtection

For this Circuit, add protection via another Circuit

Delete

Delete this opened Circuit

Close Form

Close the Circuit form altogether

Attachments

Attach document file/s to this Circuit i.e., PDF, JPEG, DOCX, etc.
