Equipment Definition Form Information
The Equipment Definition form contains three main sections in which detailed information about the equipment definition is laid out.
1 |
Graphical layout view of the equipment. Every rectangle is a slot which is defined in section 2 and modified in section 3 |
2 |
This section contains tab pages of related information of the equipment. These are used to store node type settings and creates the layout |
3 |
In this section the settings related to the layout are visible. Settings can be adjusted by double clicking on the row and modifying their values |

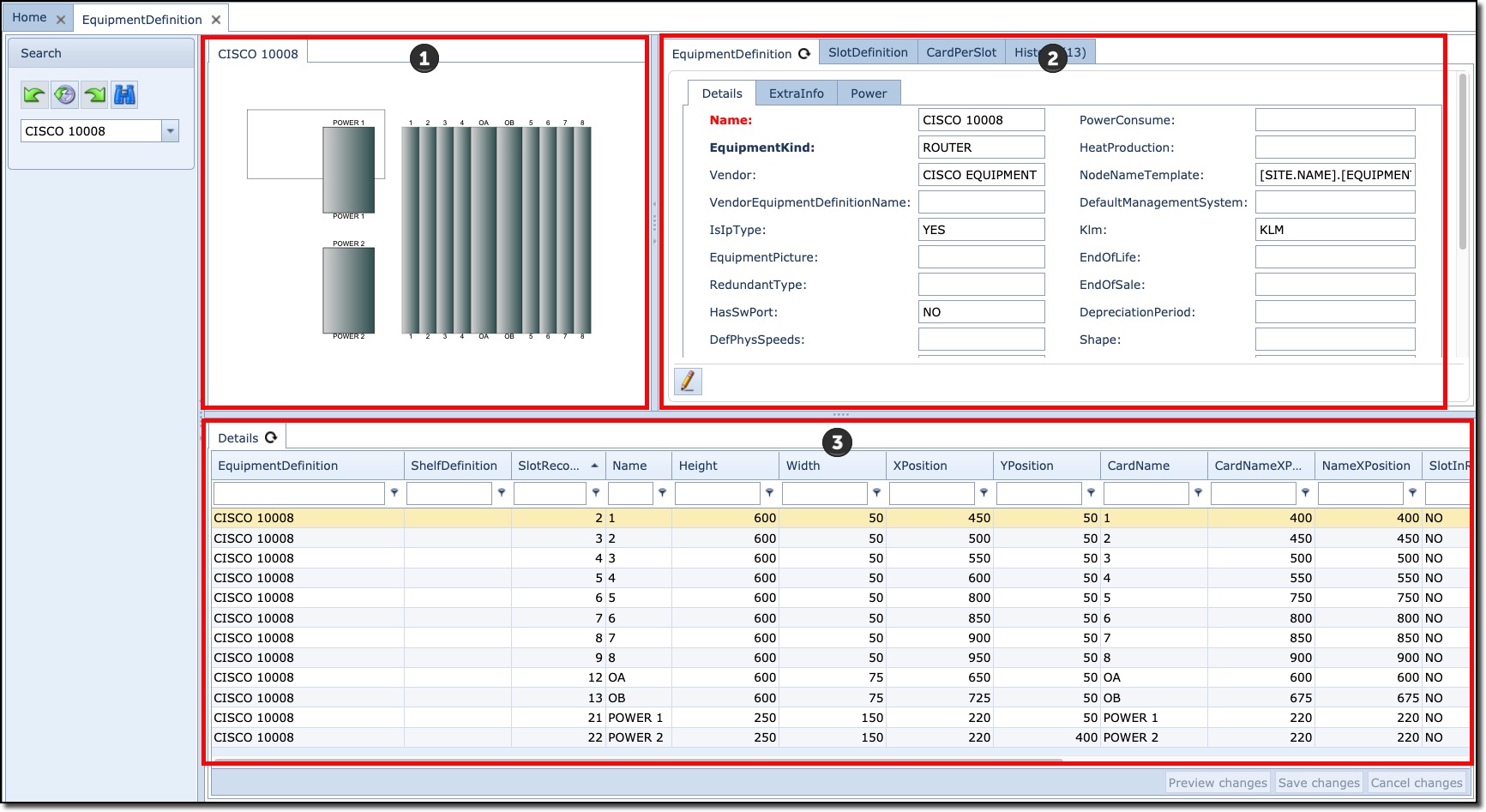

The screenshot below is showing how to modify settings data.
