Cable(s) from ODF to ODF

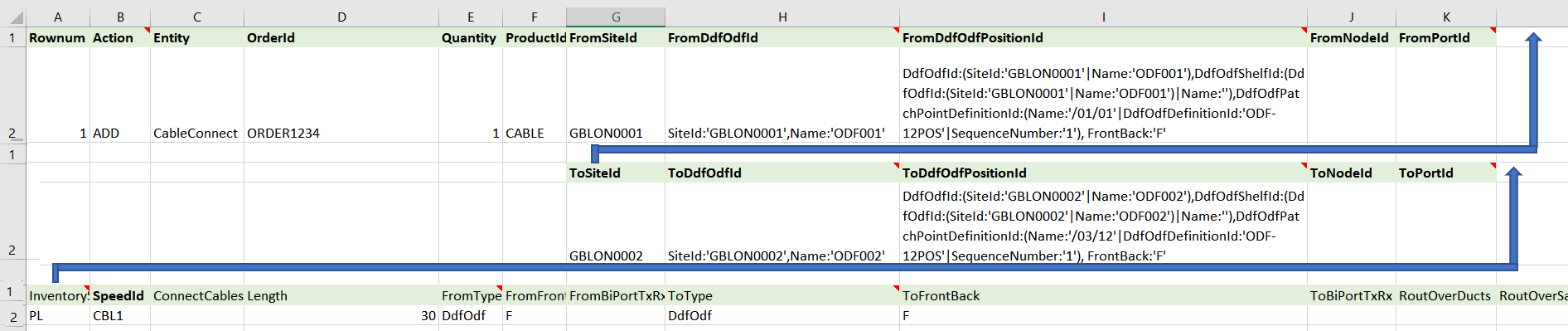

Below an example to connect a CBL1 between two ODF ports.
From:
Site: GBLON0001
ODF: ODF001
ODF shelf: no shelf > so ''
ODF type: ODF12POS
ODF position: /01/01 - FRONT SIDE
To:
Site: GBLON0002
ODF: ODF002
ODF shelf: no shelf > so ''
ODF type: ODF12POS
ODF position: /03/12 - FRONT SIDE
Cable(s) from ODF to Node

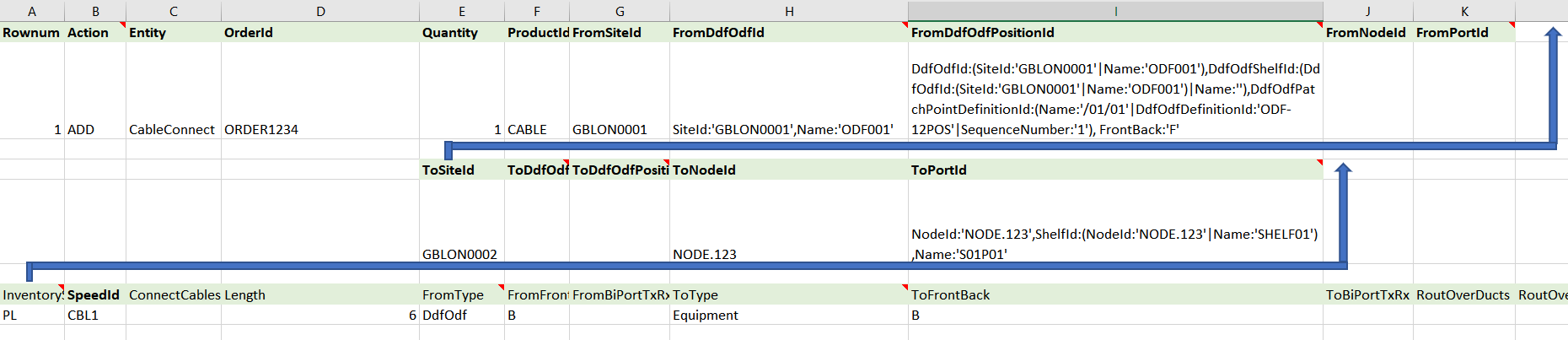

Below an example to connect a CBL1 between an ODF position and node port:
From:
Site: GBLON0001
ODF: ODF001
ODF shelf: no shelf > so ''
ODF type: ODF12POS
ODF position: /01/01 - BACK SIDE
To:
Site: GBLON0002
Node: NODE.123
Node shelf: SHELF01 > Note: in case of an equipment without a shelf, use '', so Name:''
Node port: S01P01 - BACK SIDE
