A combination of BI and UNI directional circuits can also be built.
Example 1:
The following diagram shows a Bi-Directional sub circuit in a UNI Directional carrier circuit with an AB direction setting:
The CircuitRelation direction is set to AB.
Also notice the ports’ TxRx settings.
Example 2:
A Bi-Directional sub circuit in a UNI Directional carrier circuit with both AB and BA directions set.
The CircuitRelation direction is set to BI and the DirectionCarrier is set to AB or BA

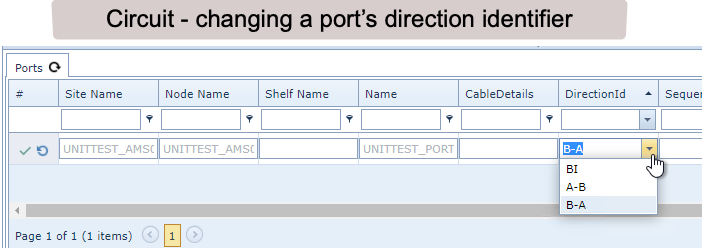

Ports relating to a Circuit - as seen from the Circuit form - can have their Direction information adjusted when required, by double clicking on the port's DirectionId property, and selecting one of the 3 given options: BI, A-B, or B-A
