A Product Code is a name of a service related to a connection.
It can be for example a product code related to a customer service, but also platform specific.
Examples:
•MPLS
•SDH Section
•DSL Service
•DCN
•NNI Interconnect
The Product Codes form can be opened via:
Existing Product Codes can be found with the search field on the left of the screen.
After a product code has been searched, a list of connections that belongs to that product code will appear.
Name |
Connection name |
Inventory Status |
Status of connection |
Speed Name |
Speed of connection |
Customer Name |
Name of the customer (can be internal name) |
Order Name |
Order number/name related to connection |
Product |
Product code name |
Service Parts |
Technology |
Vendor |
Vendor Name or Unknown |
CreateUser User Name |
User name who created the connection |
Create date |
Date when connection was created |
Delivery date |
Date when connection was set to "in service" |
Migration Date |
Date when connection was migrated |
SiteA Name |
Name of Site A of connection |
SiteB Name |
Name of SiteB of connection |
Measured length |
Length of connection as designed |
Calculated Length |
Length of connection as calculated by IMS |
Carriers Count |
Number of carrying circuits |
Sub Circuits Count |
Number of sub-circuits |
Port Counts |
Number of connected ports |
Internal Port Count |
Number of connected internal ports |
Percentage Used |
Percentage of used capacity |
To create a new product code, press
The following pop-up screen appears:
Name: |
Name of the new Product Code |
Description: |
Description of the new Product Code |
Product line: |
Type of Product Code |
|
Infra > must be chosen for all infra and transport related product codes |
|
Data > must be chosen for all data related product codes (e.g. IP, MPLS, DCN, etc) |
|
OLO > must be chosen for products that are related to leased lines and interconnect.
|
|
Important: ONLY with this "OLO" setting connections will appear in NNI interconnect form
|
Report: |
setting in case there are pre-defined reports related to the product |
Speed: |
optional setting in case product is related to only one speed (validation rule will automatically apply) |
CreateSubCircuits: |
Automatically create sub-circuits when a circuit of this product type is created |
Diameter: |
Diameter of the product |
Color |
Coolr of the product (is shown in network maps) |
Thickness |
Thickness of the product |

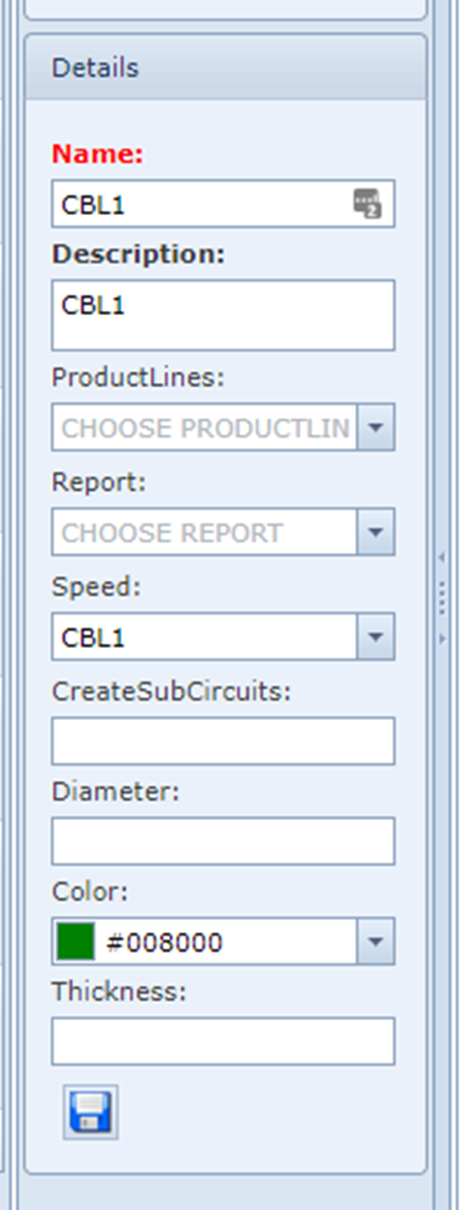

To edit an existing product code use the detail screen on the left:

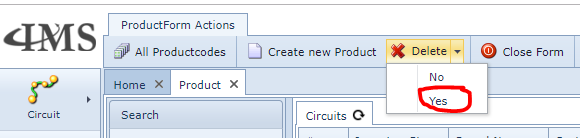

To delete a Product Code, open the Product Code first and then select:
