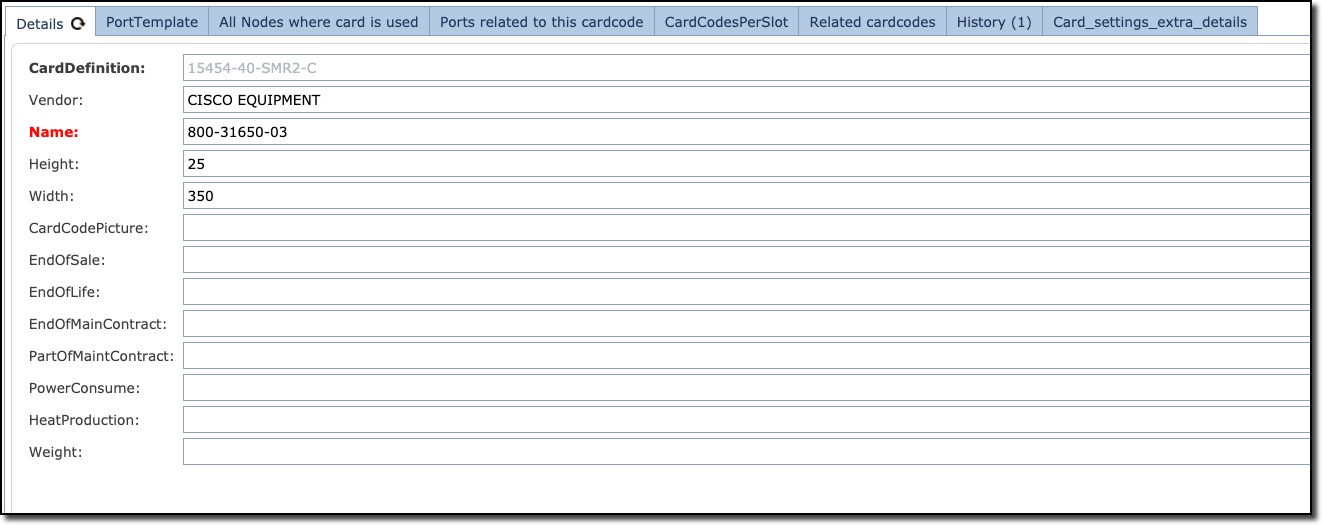

The Card Code Definition form contains all its related fields of information which can be seen in the following
screenshot.
You will also notice that in the previous section the related Card Definition to this very Card Code Definition
is explained.
The Card Code Definition contains several tabs of other IMS related objects:
Details |
All detail fields |
PortTemplate |
A list of all related port templates for this Card Code Definition – further description described in the next section |
All Nodes where card is used |
All network wide Node, Shelf, and Slot names where this card is used |
Ports related to this cardcode |
A list of all the ports throughout the network where this card code is implemented including their node, shelf, and cards names |
CardsPerSlot |
A list of permissible slot numbers this card can be located in for a given shelf definition |
OccupiedSubSlots |
Provides details on which slots in this Card Code Definition have populated SubSlots - and what Card Definitions are related to those SubSlots. |
Sub-Cards |
If a card contains sub cards, then the Sub Car tab will be visible |
Port |
A more detailed list of all ports in the network that are related to this definition i.e., port template name, cable details on that port, circuit name on that port, etc. |
Related cardcodes |
A list of any other related Card Codes |
History |
A list of user actions and modifications conducted on this particular Card Code Definition |
Card_settings_extra_details |
Extra details for card settings |
