The Port Template and Internal port Template feature enables the adding of ports to a Card Code
Definition. When this Card Code Definition is then related to a Card Definition, these ports automatically
become part of the Card Definition as well.
The PortTemplate and InternalPortTemplate tabs are made available on the CardCodeDefinition form
only when ports (and/or internal ports) have already been added.
If there are no such tabs, then it is a simple case of adding them through the CardCodeDefinition Actions
button bar options. This is explained further in the section called Adding Ports to a Card Code Definition.

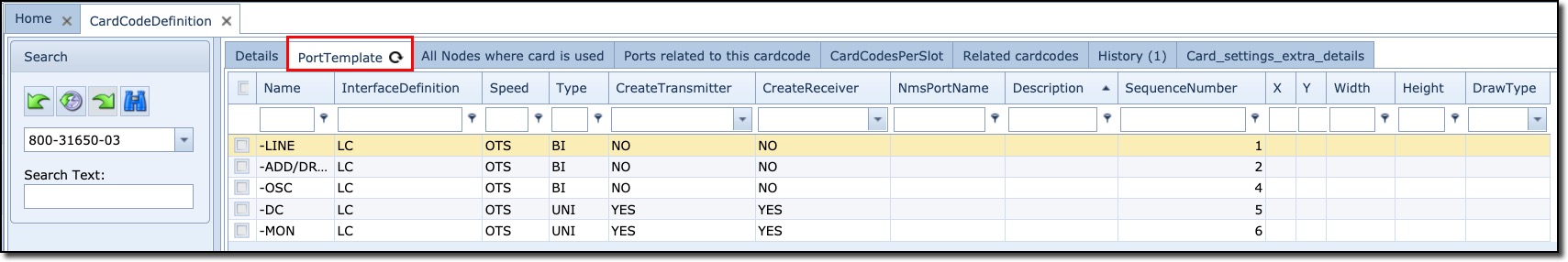

This screen shot is an example of the PortTemplate tab in an existing Card Code Definition instance.
The Port and Internal Port Templates tabs contain the following columns of information:
Name |
Name of the port. i.e., P-, P/, GI/ |
InterfaceDefinition |
Interface type selected from the drop down menu i.e., SC/PC, BNC, RJ45 |
Speed |
Port speed - determines the type of connection that can be configured on it. For multiple speeds the pipe as a separator symbol between speeds is used i.e., 1GBE|100MB|100MB |
Type |
BIdirectional or UNIdirectional option |
CreateTransmitter |
Option to create a TX port |
CreateReceiver |
Option to create a RX port |
NmsPortName |
Network Management System port name - if available |
Description |
Any additional information related to this port/s |
SequenceNumber |
Sequence number of the port - the default is 1 |
X |
Drawing positions for this port on the card – x axis |
Y |
Drawing positions for this port on the card – y axis |
Width |
The width size of this port as it appears on the card |
Height |
The Height size of this port as it appears on the card |
DrawType |
Rectangle or Circle – appearance of port on the card |
